Report and exports¶

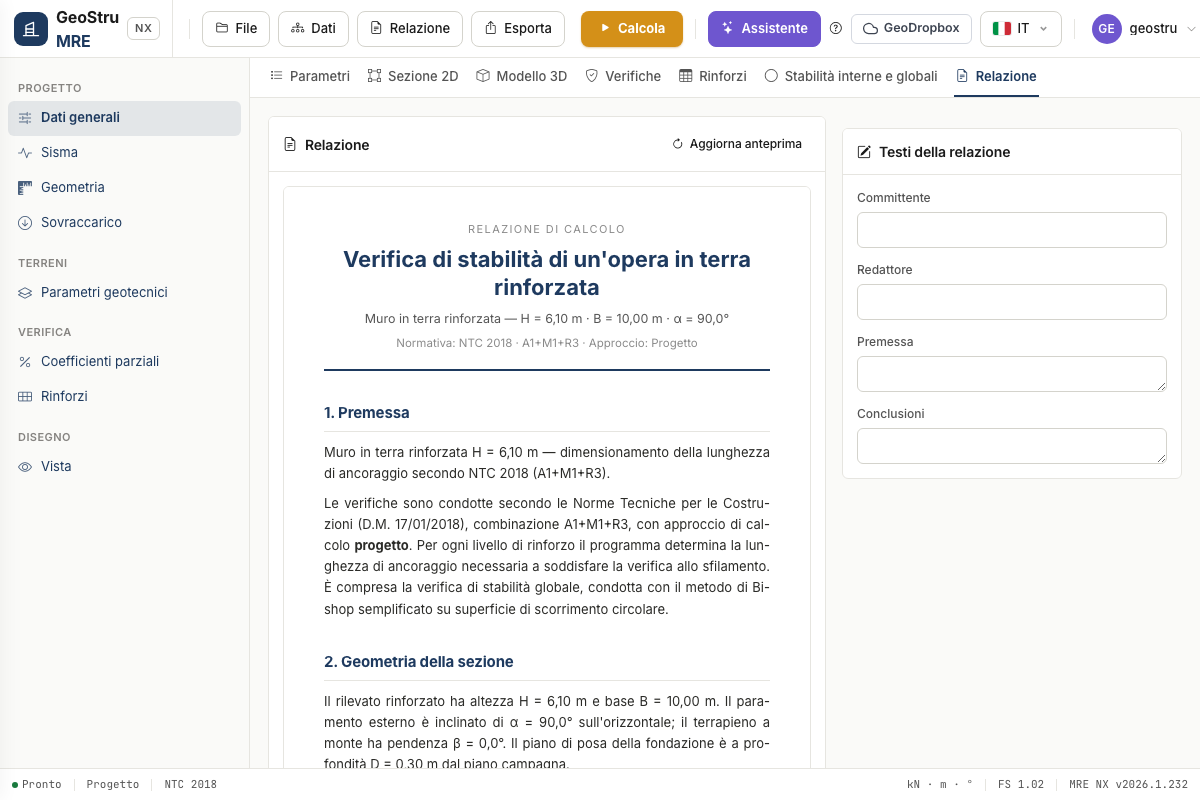

The Report tab shows a preview of the document with, on the right, the editable texts (client, author, foreword, conclusions).

Report preview with the panel of editable texts

The report covers: foreword; geometry (including the inner excavation); surcharge with its type and the γ_Q/ψ₂ factors; geotechnical parameters; calculation combinations with the table of A/M/R factors and k_h/k_v per combination; seismic action with the reference to table 7.11.III and to the increased overturning coefficient; reinforcements (with the commercial product and the wrap-around); external checks in order with the FS × combination table; reinforcement checks with the envelope table and the charts per level; global stability with the tieback/compound paragraph; conclusions.

The figures (section, reinforcement layout, 3D, stability, charts) are captured from the page: to have them in the document, run the calculation and visit the tabs before generating. Export to DOCX (native) or PDF; the project is exported as an .mre file or to GeoDropbox.
